| Current Pos | Turf installation Equipment |
 |
| Main technical data |
| Working width: 1-5m |
| Lifting Height: 1200mm |
| Lifting Power: 2000Kg |
| Machine weight: 105kg |

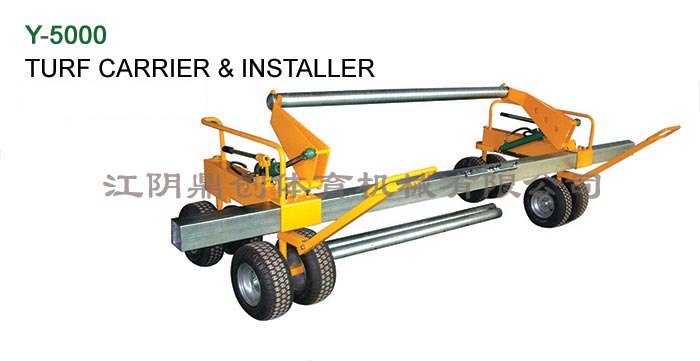

| Appearance measurement: L1400×W950×H1000mm | | The machine is specialized cart in transport and installation for artificial turI.the turf allows the laying of artificial turf reels up 5m width.The operation of machineconsists of 2 carts to work together (direction charged.transport.up and down): Each cart is Provided with two steerable double tyres being turned synchronously viadrawbar and tie bar;A squar crossbeam connects both carts to a transport unit 4 pairs of wheels all together to take the total weight.that's why only a minimum of surfacepressure will be guaranteed.ensuring even an effortless transport on non-compacted basic surfaces;Both carts are equipped with a hydraulically actuated liftig deviceconsisting of a hand pump and hydraulic cylinder to put in the axle lor an easy lifting and lowering of the artificial turf reel.
|
|
|
